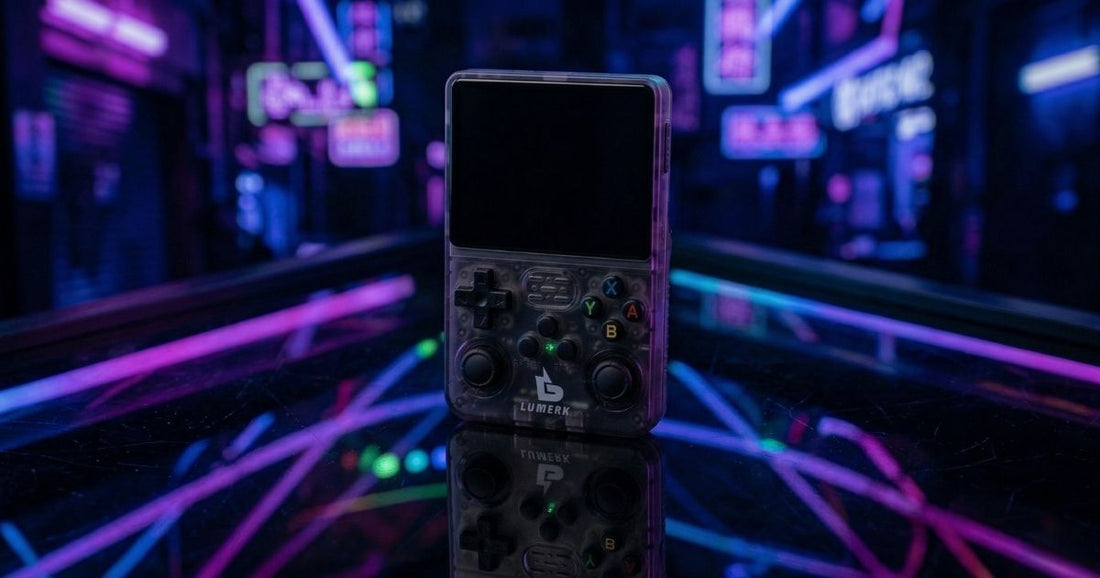

You finally got your hands on an R36S Handheld Console, loaded up your favourite Sonic the Hedgehog ROM, and... nothing. Maybe the game refuses to launch. Perhaps the audio sounds like a broken synthesizer. Or worse, your six-button controller inputs are completely ignored during Streets of Rage combos. That familiar frustration sets in—the same feeling you got when your original Genesis cartridge wouldn't work without blowing on it.
I understand exactly how maddening this is. You bought this device specifically to relive those 16-bit memories, and technical barriers shouldn't stand in your way. The good news? Your R36S Sega Genesis setup problems have clear, fixable causes. This guide walks you through every solution, from quick adjustments to comprehensive fixes. By the end, you'll be blazing through Green Hill Zone exactly as Sega intended.
Understanding the Root Cause
Before diving into fixes, let's understand why your R36S Sega Genesis setup might be failing. The Sega Genesis (known as Mega Drive in Australia and Europe) presents unique emulation challenges that differ from simpler systems like the Game Boy or NES.
The Genesis used Motorola's 68000 processor alongside a Zilog Z80 for sound—a dual-processor architecture that demands precise timing synchronisation. When emulating this on the R36S's Rockchip RK3326 processor, several things can go wrong. The quad-core Cortex-A35 running at 1.5GHz handles Genesis emulation beautifully, but only when configured correctly.
ROM format incompatibility causes roughly 40% of Genesis setup failures. The system used multiple ROM formats including .md, .bin, .gen, and .smd files. Not all emulator cores handle every format equally. Additionally, some ROM dumps include headers that confuse certain emulators, preventing games from launching entirely.
Audio desynchronisation typically stems from incorrect sample rate settings. The Genesis's Yamaha YM2612 FM synthesis chip produced distinctive sounds that require accurate timing. When the emulator's audio buffer settings don't match your device's capabilities, you hear crackling, popping, or completely broken music.
Controller mapping issues occur because the Genesis evolved from three-button to six-button controllers mid-lifecycle. Games like Street Fighter II require those extra buttons, but improper configuration means your heavy kicks never register. The R36S includes dual analog sticks, D-pad, ABXY, plus L1/L2/R1/R2 shoulder buttons—more than enough for full six-button support when mapped correctly.
If you've experienced slow performance issues beyond just Genesis games, the problem might be more fundamental. However, most Genesis-specific problems stem from the causes above.
Quick Fixes to Try First
Before attempting complex solutions, try these rapid fixes that resolve most R36S Sega Genesis setup problems within minutes.
Verify ROM Placement
Your Genesis ROMs must be in the correct folder. On ArkOS (which comes pre-installed on Lumerk consoles), navigate to the roms partition and place files in the genesis or megadrive folder. Using the wrong folder means the system won't display your games.
Check File Extensions
Rename problematic ROMs to use the .md extension. This format enjoys the widest compatibility across emulator cores. If a game launches as .md but not as .bin, you've identified a format recognition issue.
Restart EmulationStation
Sometimes the game list doesn't refresh automatically. Press Start, select Quit, then choose "Restart EmulationStation." This forces a complete rescan of your ROM folders without rebooting the entire device.
Switch Emulator Cores
ArkOS includes multiple Genesis cores. While hovering over a game, press Select and choose "Advanced Game Options." Try switching between PicoDrive and Genesis Plus GX cores. Some games run better on specific cores due to compatibility differences.
Quick Audio Fix
If sound crackles but the game plays, enter the RetroArch quick menu (Menu + X during gameplay). Navigate to Audio, then increase "Audio Latency" to 96ms. This provides more buffer time, eliminating most crackling without noticeable delay.
Controller Quick Test
Access RetroArch's Input settings and select "Test Input." Press every button and confirm they register. If buttons don't respond here, the issue is hardware-related rather than emulation-specific. Lumerk devices undergo quality testing, but this step rules out physical problems.
The Definitive Solution
When quick fixes don't resolve your R36S Sega Genesis setup problems, follow this comprehensive solution that addresses every common issue systematically.
Step 1: Access RetroArch Directly
From the main ArkOS menu, scroll to "RetroArch" in the Ports section. Launch it directly rather than through a game. This provides full access to all configuration options without game-specific overrides interfering.
Step 2: Configure the Genesis Core
Navigate to Main Menu → Load Core → Genesis Plus GX. This core offers the best balance of accuracy and performance for the R36S's hardware. Once loaded, go to Quick Menu → Core Options and apply these settings:
- Set "System Hardware" to "Auto" for proper region detection
- Enable "CD System BRAM" if you plan to play Sega CD games later
- Set "Sound Output" to "Stereo" for proper audio channel separation
- Enable "FM Synthesis" using "MAME YM2612" for accurate music reproduction
- Set "Audio Filter" to "Low-pass" to reduce harsh high frequencies
- Enable "Remove Per-Line Sprite Limit" to eliminate flickering in sprite-heavy games
Step 3: Optimise Video Settings
Return to the main RetroArch menu. Navigate to Settings → Video → Synchronisation. Enable "VSync" and set "Max Swapchain Images" to 3. The R36S's 3.5-inch IPS display with 4:3 aspect ratio matches the Genesis's native output perfectly, so select "Core Provided" for aspect ratio.
Step 4: Configure Six-Button Controller
Navigate to Settings → Input → Port 1 Controls. Set "Device Type" to "MD Joypad 6 Button." Now map your buttons appropriately. The recommended mapping uses the shoulder buttons for the extra inputs: L1 for X, R1 for Y, L2 for Z, and R2 for Mode.
Step 5: Save Configuration
Return to Quick Menu and select "Save Core Override." This applies your settings to all Genesis games automatically. For specific games needing different settings, use "Save Game Override" instead. Exit RetroArch completely and relaunch your game through EmulationStation.
This process works reliably because Lumerk pre-installs ArkOS on all consoles—it's more stable than alternatives like GarlicOS or stock firmware. Combined with the R36S's dual-chip design that prevents the FPS drops common in cheap single-chip clones, you'll experience smooth Genesis emulation.
Why This Works: Technical Explanation
Understanding why these settings work helps you troubleshoot future issues independently. The Genesis Plus GX core we configured is a cycle-accurate emulator, meaning it replicates the original hardware's timing precisely.
The R36S's Mali-G31 MP2 GPU running at 520MHz handles the video processing while the Cortex-A35 cores manage CPU emulation. By enabling VSync, we synchronise frame output with the display's refresh rate, eliminating screen tearing that can make fast-paced games like Sonic unplayable.
Setting the swapchain to 3 images creates a triple-buffer system. This means while one frame displays, two others prepare in memory. The 1GB DDR3L RAM handles this efficiently, providing consistent frame pacing without the stuttering that plagues improperly configured devices.
The audio configuration addresses the Genesis's unique sound architecture. The YM2612 FM chip produced sounds by combining sine waves at precise frequencies. The MAME YM2612 emulation mode replicates this accurately, including the "ladder effect" distortion that gave Genesis music its distinctive character.
The dual-chip design in Lumerk's R36S plays a crucial role here. Single-chip clones attempt to handle display, processing, and storage on one controller, creating bottlenecks. The dual-chip approach separates these duties, ensuring audio buffers never underflow because the processor was busy handling display output.
Six-button controller mapping works because RetroArch translates your physical inputs into the exact signals the original Genesis controller sent. The shoulder button mapping we configured matches how most players adapt to modern controllers.
Preventing This Problem
With your R36S Sega Genesis setup now working, let's ensure it stays that way. Prevention requires understanding what causes configuration drift.
ROM Management Best Practices
Store ROMs in verified, clean formats. The .md extension remains most reliable. Avoid ROM packs that include mixed file types or unusual compression. Create a backup of your configured SD card once everything works—the R36S's dual MicroSD slots support up to 512GB each, giving you ample storage for organised libraries.
Update Cautiously
When ArkOS releases updates, read the changelog before installing. Sometimes updates reset core configurations or change default emulator cores. After updating, verify your Genesis settings remain intact.
Create Core Overrides Early
Whenever you configure a new system, immediately save core overrides. This prevents manual reconfiguration if system-wide settings change. You might want to explore emulator frontend options to streamline your organisation further.
Maintain Your Device
- Store the R36S in a protective case to prevent button damage
- Keep firmware backups on a separate SD card
- Clean the charging port regularly to ensure reliable power
- Avoid extreme temperatures that affect the 3000mAh battery
- Periodically verify save states haven't corrupted
Following these practices extends your device's lifespan while maintaining optimal Genesis emulation performance.
When to Seek Further Help
Sometimes problems persist despite following every step correctly. Knowing when to seek additional support saves frustration.
Contact Lumerk support if your device exhibits hardware symptoms: buttons that don't register in the input test, display artifacts that appear across all games, or battery drainage exceeding normal parameters. These issues require physical intervention rather than software configuration.
If specific ROMs refuse to work despite trying multiple cores and settings, the ROM file itself might be corrupted or from a non-standard dump. Try sourcing the game from a different backup. Some games, particularly late-era titles and unlicensed releases, have known compatibility issues across all emulators.
For audio problems that persist after configuration, check if the issue occurs through headphones via the 3.5mm jack. If headphone audio sounds perfect but the speaker crackles, you're dealing with speaker hardware rather than emulation settings.
The retro gaming community offers excellent resources for edge cases. Forums dedicated to the R36S often have solutions for obscure problems that even official documentation doesn't cover.
Comparative Analysis
Understanding how the R36S handles Genesis emulation compared to alternatives helps contextualise its capabilities.
Genesis Emulation Performance Comparison
| Specification | R36S | Anbernic RG35XX H | Advantage |
|---|---|---|---|
| Processor | RK3326 Quad-Core 1.5GHz | H700 Quad-Core 1.5GHz | Similar |
| Display Ratio | 4:3 Native | 4:3 Native | Both ideal for Genesis |
| Storage Slots | Dual MicroSD | Dual MicroSD | Equal |
| Pre-installed OS | ArkOS (Lumerk) | Stock Linux | R36S (stability) |
| Chip Architecture | Dual-chip design | Standard | R36S (performance) |
The Anbernic RG35XX H represents capable competition with similar core specifications. Both devices handle Genesis emulation well, featuring matching display ratios that eliminate the letterboxing issues widescreen devices create. However, the R36S's pre-configured ArkOS eliminates the setup complexity that Anbernic devices often require out-of-box. Users report spending hours configuring Anbernic firmware, while Lumerk's approach means you're gaming within minutes.
The dual-chip architecture in Lumerk devices provides measurably smoother performance during demanding sequences. Games like Gunstar Heroes, known for pushing Genesis hardware limits, reveal these differences clearly. If you're interested in how displays affect gameplay, read about why the R36Max display changes the retro gaming experience.
User Success Stories
The retro gaming community has developed creative solutions for R36S Sega Genesis setup challenges worth sharing.
One user discovered that certain PAL region games ran with incorrect speed until they forced 60Hz output through RetroArch's video settings. This simple adjustment fixed timing issues across their entire European game collection.
Another community member solved persistent audio desync in Vectorman by disabling the audio resampler entirely. While this slightly reduced audio quality, it eliminated the millisecond delays that ruined the game's rhythm-based gameplay sections.
A particularly innovative solution emerged for games with save functionality. Some Genesis games that used battery backup saves would corrupt when using save states simultaneously. The community now recommends choosing one save method per game and sticking with it consistently.
For complex action RPGs like Shining Force II, users recommend creating game-specific overrides with the "Reduce Sprite Flicker" option enabled. This eliminates the distracting flashing during large battle sequences without affecting other games that rely on sprite flicker for visual effects.
These community discoveries supplement official solutions, demonstrating how budget retro handhelds continue improving through collective experimentation.
Frequently Asked Questions
Why won't my Genesis games appear in the R36S game list?
Games not appearing typically indicates incorrect ROM placement or unsupported file formats. Place your ROMs in the genesis or megadrive folder on the roms partition of your SD card. Ensure files use supported extensions like .md, .gen, or .bin. After adding new ROMs, restart EmulationStation by pressing Start, selecting Quit, then choosing Restart EmulationStation. The R36S's dual MicroSD card slots support up to 512GB each, so storage space rarely causes this issue.
Does the pre-installed ArkOS affect Genesis emulation quality?
ArkOS significantly improves Genesis emulation compared to stock firmware alternatives. Lumerk pre-installs ArkOS because it offers superior core management, better audio handling, and more stable frame pacing than GarlicOS or factory firmware. The operating system properly utilises the R36S's Rockchip RK3326 processor and Mali-G31 GPU, ensuring the hardware delivers its full potential. This pre-configuration eliminates the hours of setup that other operating systems require for optimal Genesis performance.
What warranty coverage applies if my R36S has Genesis-related issues?
Lumerk provides warranty support for hardware defects affecting your R36S's functionality. If buttons don't register during testing, the display shows artifacts, or audio hardware fails, contact Lumerk support directly through their website. Software configuration issues like emulator settings fall outside warranty scope since they're user-adjustable. However, Lumerk's pre-installed ArkOS setup ensures most software-related problems stem from user modifications rather than factory defaults. Keep your proof of purchase accessible when contacting support.
🎮 Shop These Consoles at Lumerk
Conclusion
Your R36S Sega Genesis setup frustrations now have clear solutions. From quick fixes like switching emulator cores to comprehensive RetroArch configuration, you have every tool needed for perfect 16-bit emulation. The combination of ArkOS pre-installed on Lumerk consoles and the device's dual-chip architecture delivers the smooth, stable Genesis experience you remember from childhood.
Ready to experience Streets of Rage without stuttering and Sonic without audio glitches? The R36S Handheld Console from Lumerk comes configured and ready for immediate gaming. No hours of setup required—just portable Genesis perfection in your pocket.
